ISOLATOR SWITCHES, DISCONNECTORS, CIRCUIT BREAKERS
Appropriately certified isolation devices must be installed within in the line feeding electrical equipment in hazardous area, to allow safe electrical disconnection before inspection or service. Isolators can also provide cable or load protection function (circuit protector or circuit breakers). Socket outlets and lighting circuits not exceeding 20 Amps should be protected by an additional Residual Current Device.
We offer a comprehensive range of Ex d enclosed isolator switches, circuit breakers and RCDs with external padlockable operating handle, 2, 3 or 4-pole, for AC or DC application, in three product families:
EJB1D125             up to 125 Amps
EJB4D400            up to 400 Amps
EJB6D800            up to 800 Ampps
EJB7D1600          up to 1600 Amps
The entries and the internal terminals are designed for the direct connection of up to 6 conductors in parallel, based on the rated current. The internal protection earth connection facilities are generously sized to suit the application.
125 A Switch Disconnector

ISOLATOR 3-4 p 125 Amps

EJB1D3125
Isolator / Load Break Switch Disconnector, up to 125 A, suitable for cables with conductor up to 70 sqmm.
Optional auxiliary signal contacts.
External padlockable operating handle.

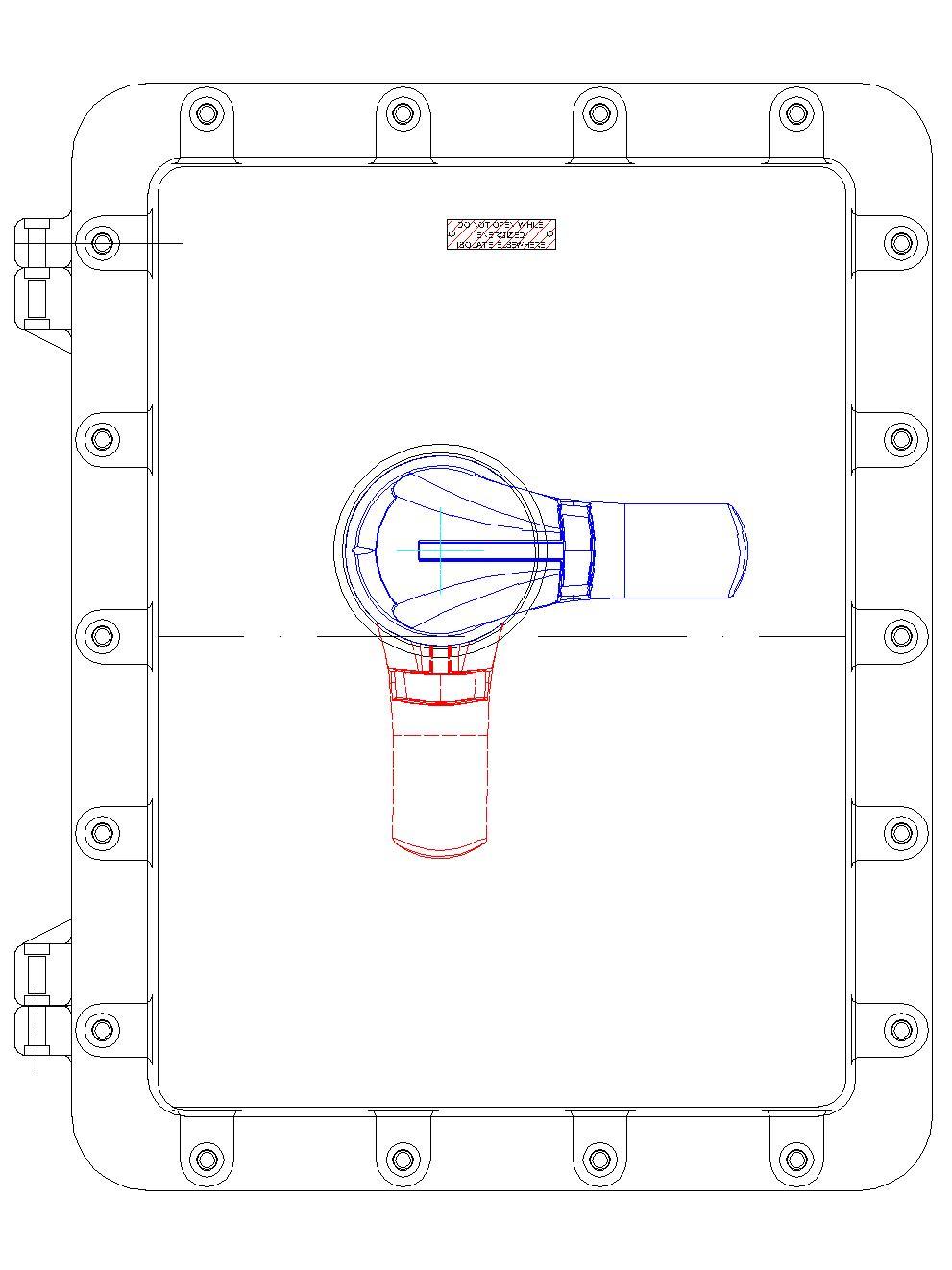

Switch Disconnector

ISOLATOR, 400 Amps LOAD BREAK SWITCH

EJB4D3400
Isolator / Load Break Switch Disconnector, up to 400 A, suitable for cables with conductor up to 240 sqmm (2x120 sqmm).
Auxiliary signal contacts.
External padlockable operating handle.
Explosion Proof Circuit Breaker

ISOLATOR - MCCB 4A 800 Amps

EJB6D4800
Isolator / Load Break Switch Disconnector, or MCCB, up to 800 A, suitable for cables with conductor up to 480 sqmm (4x120 sqmm).
Auxiliary signal contacts.
Stainless Steel External padlockable operating handle.
